Product Description:

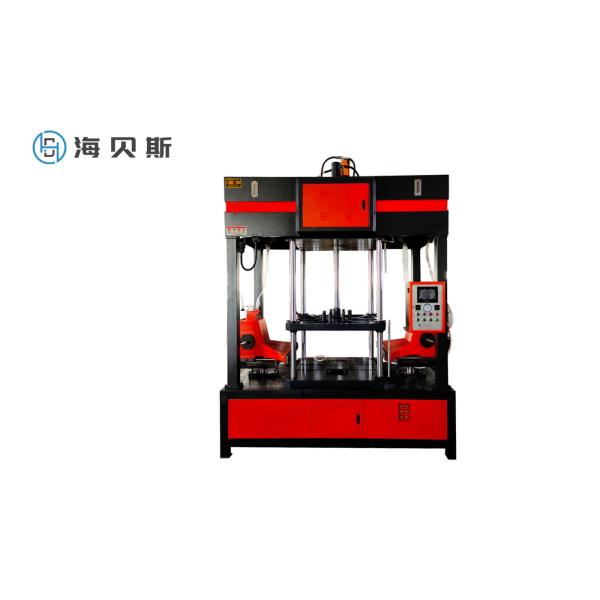

1. Automatic Double-Head heated core box shooter is a heated core box core-making equipment with a four-column operable structure which can be operated manually or automatically
2. It is applicable to sand core with a qualitative properties less than 15kg in one side.
3. Its working principle is to shoot the dry resin bonded sand into a heated core-box. After being rapidly hardened to a certain thickness, high quality sand core with a smooth surface and precise dimension is obtained.
4. The core shooting machine working procedure: Core box clamps----sand shooting head clamps----sand shooting----shooting.
Technical Parameters:
| SL | SPECIFICATION | |
| 1 | Max Sand Core Weight | 8kg*2 |
| 2 | Max Mold Size | 540*650*350mm |
| 3 | Max Distance Between Nozzies | 360mm |
| 4 | Max Stroke Of Die Opening | ≤600mm |
| 5 | Total Power | 12kw |
| 6 | Net Weight | 880kg |
| 7 | Dimension(L*W*H) | 1900*880*2350mm |
Support and Services
We are dedicated to providing our customers with the highest quality of technical support and service for the Shell Core Shooter Machine. Our customer service team is available 24/7 to answer any questions or technical issues you may have. We provide a variety of support services, such as:
- Diagnosing and troubleshooting of product design, operation, and performance issues
- Installation and setup of the Shell Core Shooter Machine
- Providing technical advice and guidance on best practices for using the machine
- Regular maintenance and servicing of the machine
- Replacement of parts and components as needed
- Providing updates and upgrades for the machine
If you have any questions or technical issues, please contact us and our customer service team will be happy to help. Thank you for choosing the Shell Core Shooter Machine.
Packing and Shipping
FAQ
1.COULD YOU ARRANGE THE ENGINEER FOR INSTALLATION AND COMMISSIONING?
A:Obviously yes,but the buyer pay the charges.
2.HOW TO CHOOSE CORE MAKING MACHINE?
A:Different products require different model(Contact me for the details)
3.DO YOU PROVIDE ANY SPARE PARTS WITH THE MACHINE?
A:Yes,we will provide some common parts for you according to our packing list(cotact us for packing list)
4.WHAT IS THE DELIVERY PERIOD AFTER PLACING THE ORDER?
A:Normally 10-15days after deposit..
5.WHAT IS THE WARRANTY PERIOD AND AFTER-SERVICE FOR YOUR MACHINE?
A:1 year warranty for components and life-long technical supports(details depends on the warranty rules)
